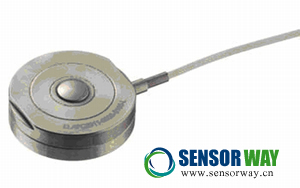

- FC23系列力傳感器中英文產品介紹
- 來源：賽斯維傳感器網 發表于 2014/6/16
Applications: Batch weighing, Robotics end-effectors, Variable force control, Load and compression sensing, Assembly line force measurement, Pumps, Hoist and winch loads, Weighing
Description: The FC23 Series low cost compression force sensors create new markets previously unrealizable due to cost and performance constraints. This series raises the bar in price and performance. Measurement Specialties’ proprietary Microfused™ technology, derived from demanding aerospace applications, employs micromachined silicon piezoresistive strain gages fused with high temperature glass to a high performance stainless steel substrate. Microfused™ technology eliminates age-sensitive organic epoxies used in classical load cell designs providing excellent long term span and zero stability. Operating at very low strains, Microfused™ technology provides gage factors greater than 100, an essentially unlimited cycle life expectancy, superior resolution, exceedingly high over-range margins without the need for stops and a ratiometric span of up to 4 V. Microfused™ sensors are used in a variety of applications including bathroom scales, paint sprayers and safety-critical automotive brake sensors. Model FC23 is appropriate for use in all types of OEM weighing and force measurement applications where high reliability and accuracy are critical. From assembly line applications to high capacity printing presses, the FC23 is the OEM designer’s dream-come-true: cost-optimized to bring your OEM products to life whether you need thousands or millions of load cells annually. Although the standard model is ideal for a wide range of applications, our dedicated design team at our Load Cell Engineering Center is ready to provide you with custom designs for your OEM applications. The FC23 is fully thermally compensated for changes in zero and span with respect to temperature and offer normalized zero and span for interchangeability. Consult Measurement Specialties for uncompensated super low cost variants of the FC23 load cell.
Features:
Compression ranges: from 50 to 2000 Lbf
High Level or Millivolt outputs
Interchangeable
Compact load button design
Industry standard packaging
Low cost
Small size
Low noise
Robust: high overrange capability
High reliability
Low deflection
Low off center errors
Fast response time
Essentially unlimited cycle life expectancy
典型應用: 批量稱重，機器人末梢執行器，變力控制，負載/壓力測量，流水線稱重，泵，絞車和起重機，稱重
產品描述: FC23系列力傳感器具有高性能，低成本的特點。源于航天航空業的特殊要求，MEAS利用獨有的微熔技術通過高溫熔解玻璃將微機械壓阻應變片與高性能不銹鋼基板粘合。微熔技術徹底擺脫了傳統稱重傳感器所使用的限制產品壽命的有機環氧樹脂，從而具有極好的零點和長期穩定性。在形變非常小的情況下，微熔技術利用應變因子大于100的應變片，產品不存在壽命限制，分辨率高，抗過載能力強，最大輸出為4V。微熔力傳感器廣泛的應用于人體秤，噴涂設備，汽車剎車控制等。MEAS的FC23適用于所有需要高可靠性和高精度的稱重及力測量OEM應用。從流水線控制到印刷機，F(xiàn)C23都是OEM客戶的理想選擇。盡管標準產品已經可以滿足諸多應用，我們的設計團隊仍樂于根據您的OEM應用定制產品。FC23經過溫度補償，互換性好。
特點:
壓力范圍：50 ~ 2000 Lbf
放大或毫伏輸出
互換性好
低成本
低噪聲
耐用：高過載能力
高可靠性
偏移小
偏心誤差小
響應迅速
無壽命限制
FC23系列力傳感器更多技術參數及規格書下載請瀏覽：http://m.bkpee.cn/sensors/230.html
北京賽斯維測控技術有限公司產品咨詢熱線：010-84775646，84775648。
