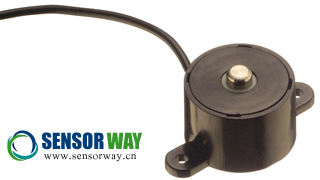

- 輸液泵用FC22力傳感器中英文產品介紹
- 來源：賽斯維傳感器網 發表于 2014/6/16
Applications: Medical infusion pumps, Robotics end-effectors, Variable force control, Load and compression sensing, Exercise machines, Pumps, Contact sensing, Weighing, Household appliances
Description: The FC22 Series low cost compression load cells create new markets previously unrealizable due to cost and performance constraints. This series provides a new level of performance at very low cost. Measurement Specialties’ proprietary Microfused™ technology, derived from demanding aerospace applications, employs micromachined silicon piezoresistive strain gages fused with high temperature glass to a high performance stainless steel substrate. Microfused™ technology eliminates age-sensitive organic epoxies used in traditional load cell designs providing excellent long term span and zero stability. Operating at very low strains, Microfused™ technology provides gage factors greater than 100, an essentially unlimited cycle life expectancy, superior resolution, exceedingly high over-range margins without the need for stops and a ratiometric span of up to 4V. Microfused™ sensors are used in a variety of applications including bathroom scales, paint sprayers and safety-critical automotive stability control. Measurement Specialties’ model FC22 is appropriate for use in all types of OEM weighing and force measurement applications where high reliability and accuracy are critical. From appliance controls to biomechanical force feedback, FC22 is the OEM designer’s dream-come-true: cost-optimized to bring your OEM products to life whether you need thousands or millions of load cells annually. Although the standard model is ideal for a wide range of applications, the design team at our Load Cell Engineering Center can provide custom designs for your OEM applications. The FC22 is fully thermally compensated for changes in zero and span with respect to temperature and offer normalized zero and span for interchangeability. Consult Measurement Specialties for uncompensated super low cost variants of the FC22 load cell.
Features:
Low cost
Compression Ranges: 10, 25, 50 and 100 lbf
High level or millivolt outputs
Interchangeable
Compact easy to fixture design
Small size
Low noise
Robust: high overrange capability
High reliability
Low deflection
Essentially unlimited cycle life expectancy
Low off center errors
Fast response time
Reverse polarity protected
典型應用: 醫療輸液泵，機器人末梢執行器，變力控制，負載/壓力測量，運動器材，泵，稱重，家用電器
產品描述: FC22系列力傳感器具有高性能，低成本的特點。源于航天航空業的特殊要求，MEAS利用獨有的微熔技術通過高溫熔解玻璃將微機械壓阻應變片與高性能不銹鋼基板粘合。微熔技術徹底擺脫了傳統稱重傳感器所使用的限制產品壽命的有機環氧樹脂，從而具有極好的零點和長期穩定性。在形變非常小的情況下，微熔技術利用應變因子大于100的應變片，產品不存在壽命限制，分辨率高，抗過載能力強，最大輸出為4V。微熔力傳感器廣泛的應用于人體秤，噴涂設備，汽車穩定性控制等。MEAS的FC22適用于所有需要高可靠性和高精度的稱重及力測量OEM應用。從家電控制到生物力學力反饋，F(xiàn)C22都是OEM客戶的理想選擇。盡管標準產品已經可以滿足諸多應用，我們的設計團隊仍樂于根據您的OEM應用定制產品。FC22經過溫度補償，互換性好。
特點:
低成本
壓力范圍：10，25，50 和 100 lbf
放大或毫伏輸出
互換性好
小型封裝，容易安裝
低噪聲
耐用：高過載能力
高可靠性
偏移小
無壽命限制
偏心誤差小
響應迅速
反向極性保護
FC22力傳感器更多技術參數及規格書下載請瀏覽：http://m.bkpee.cn/sensors/229.html
北京賽斯維測控技術有限公司產品咨詢熱線：010-84775646，84775648。
